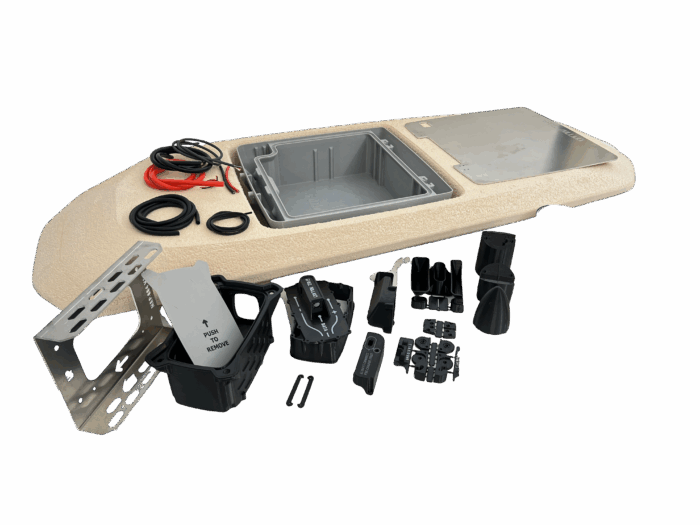

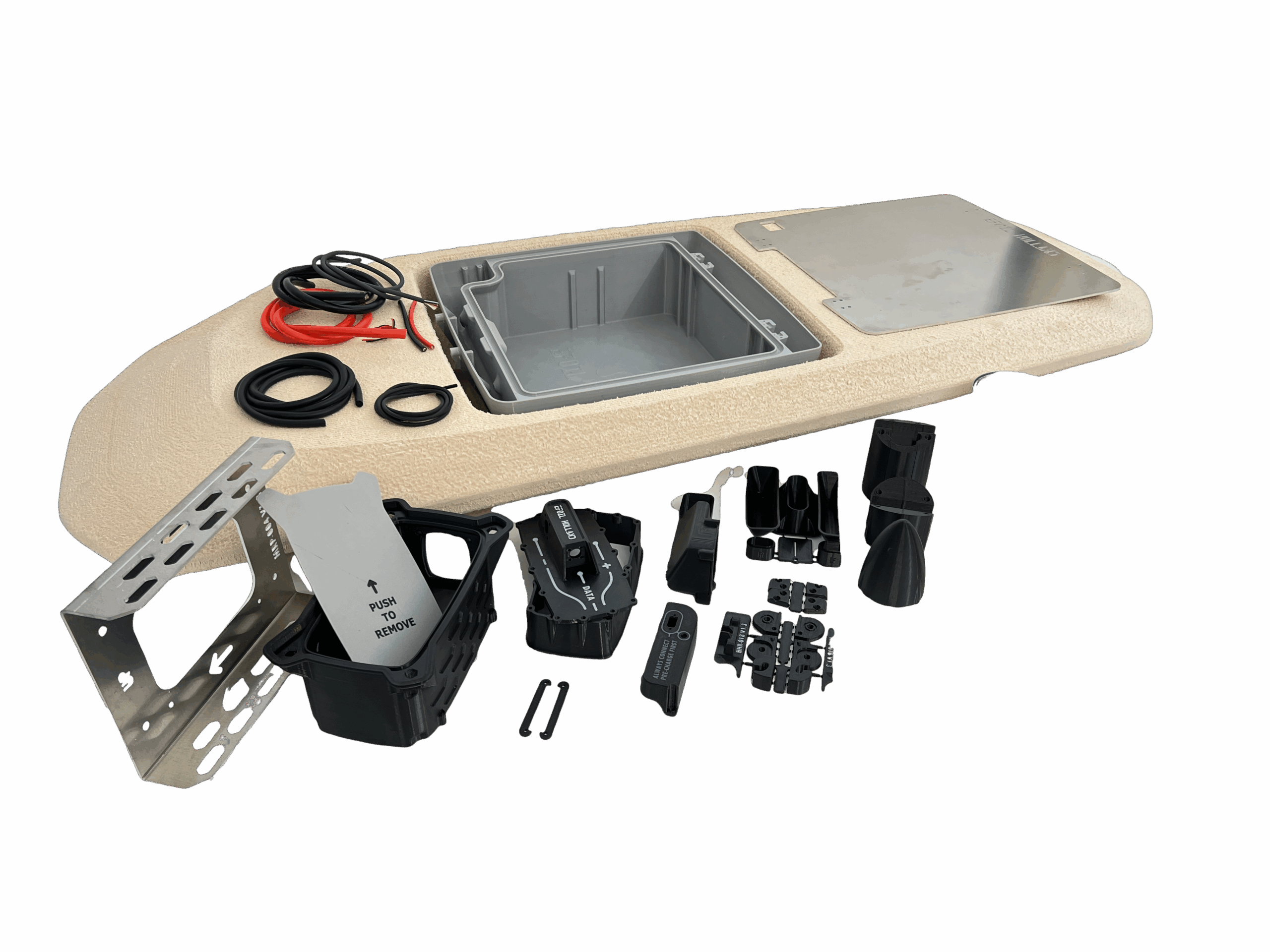

BETA V2 parts set

Description

IMPORTANT: This is a BETA KIT.
The current manual is still under development and not yet publicly available.
Access to the V2 manual and additional instructions is restricted and requires approval from the EFH team.

This set includes.

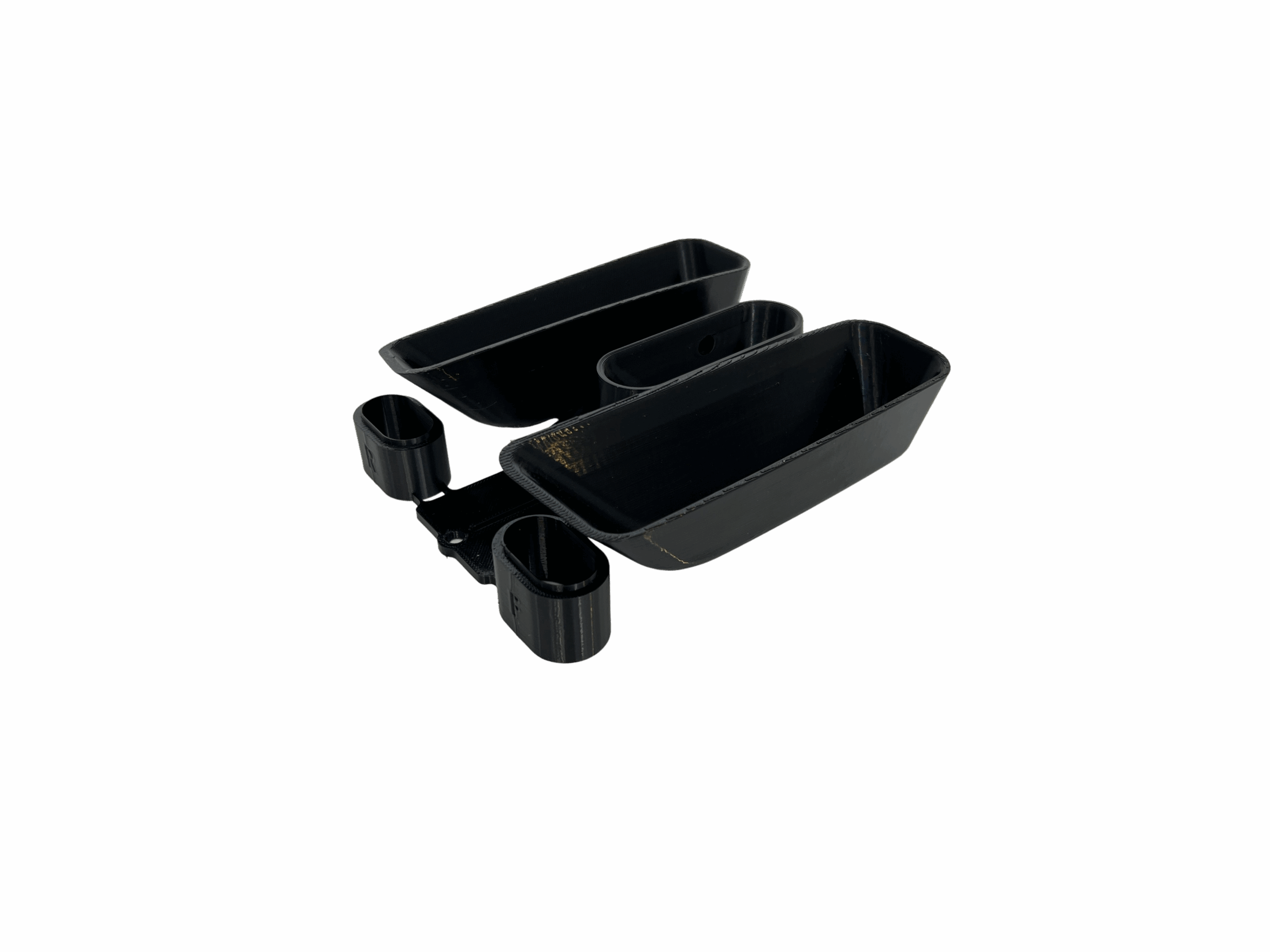

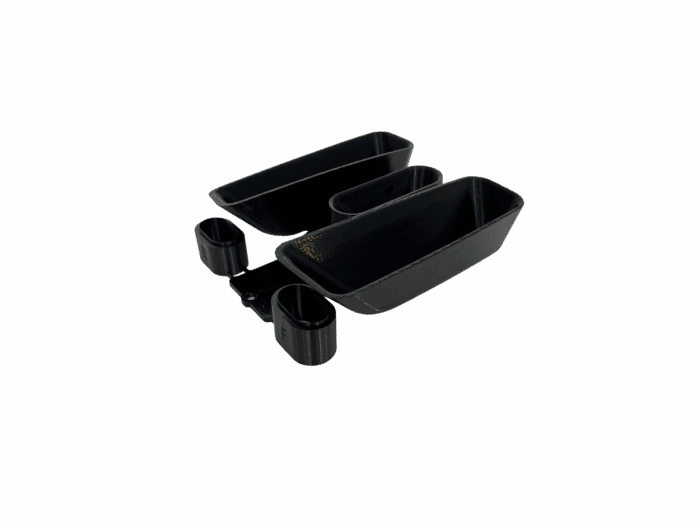

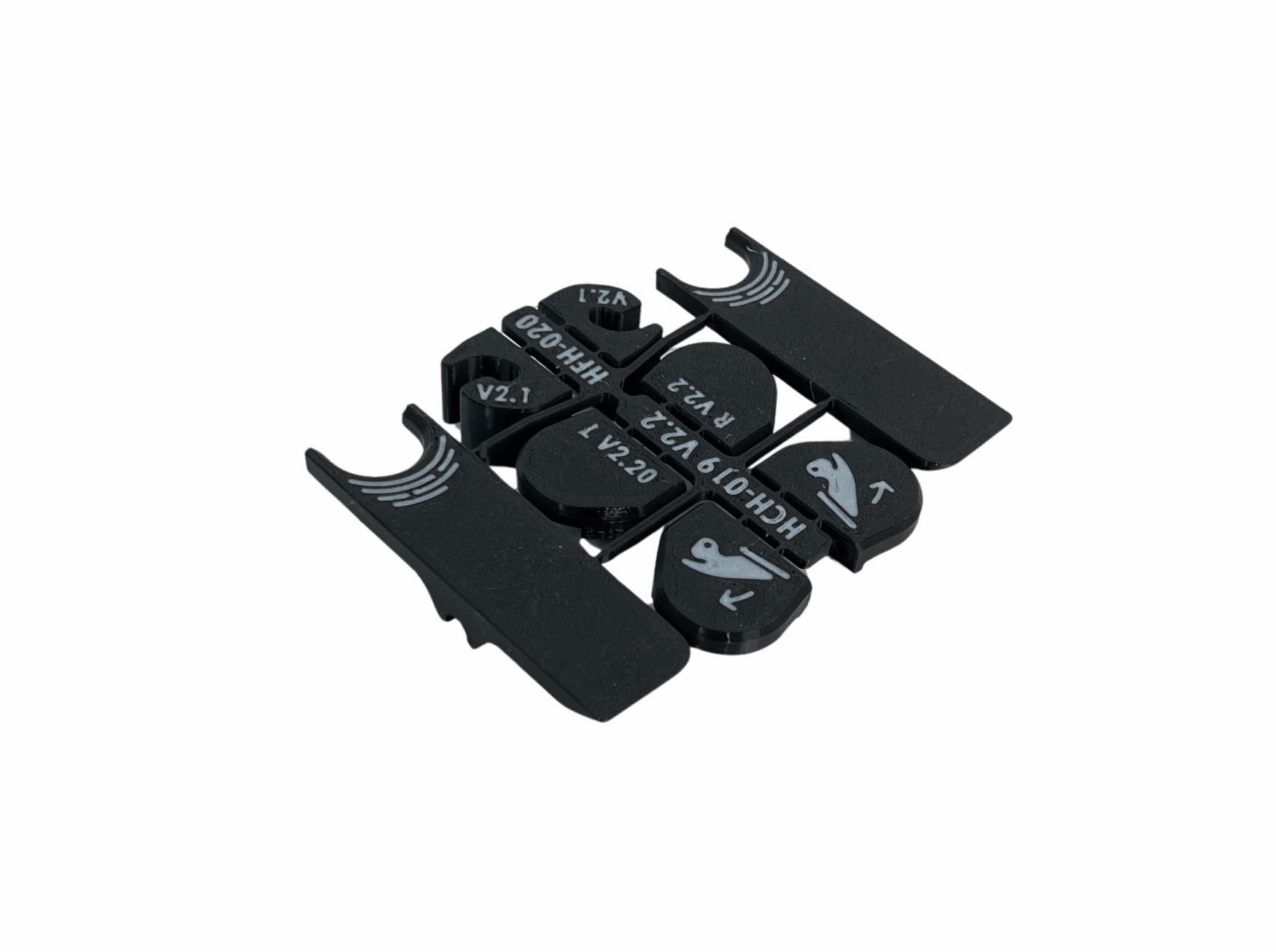

3D Parts

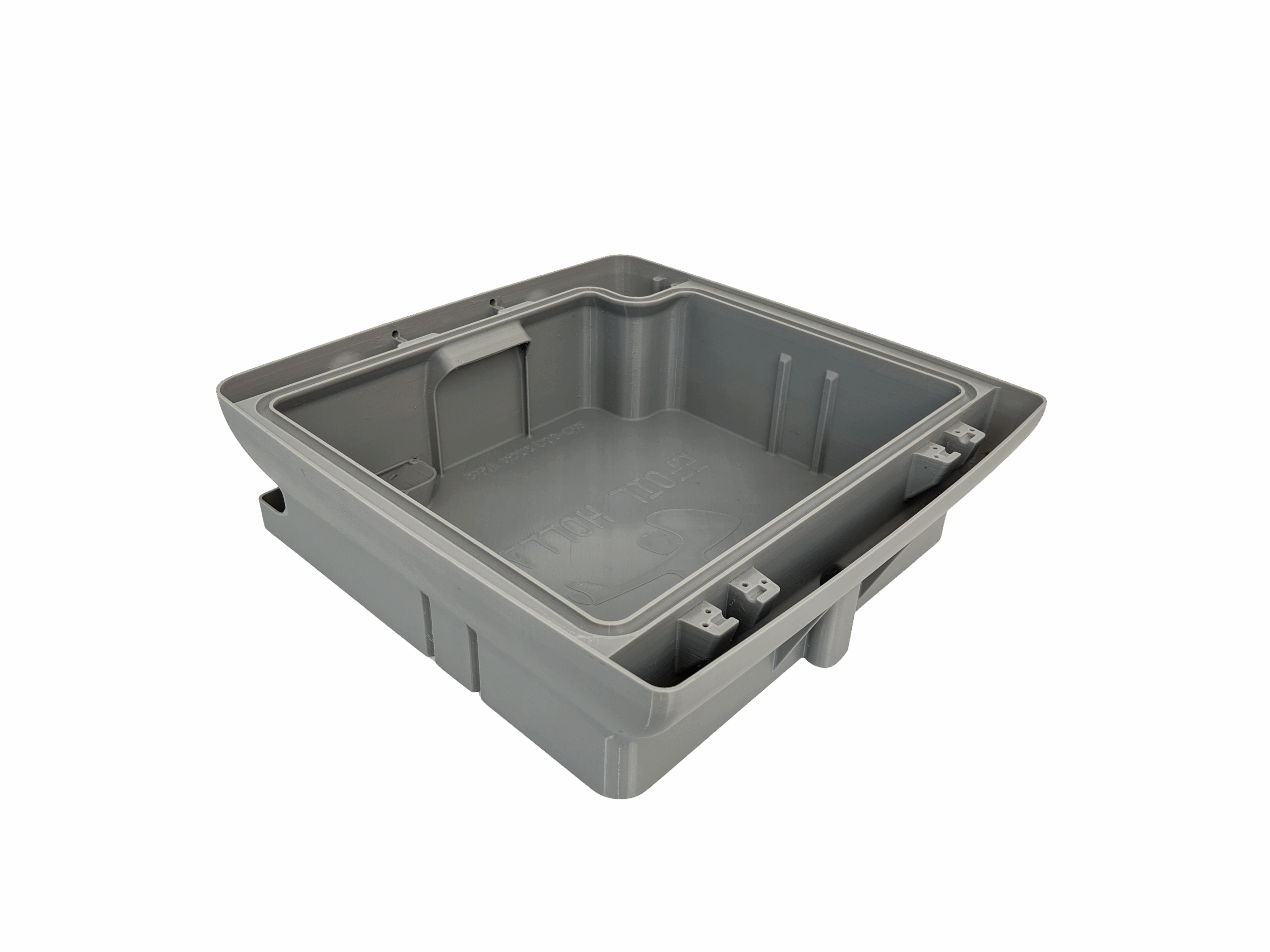

• Maincompartment PETG

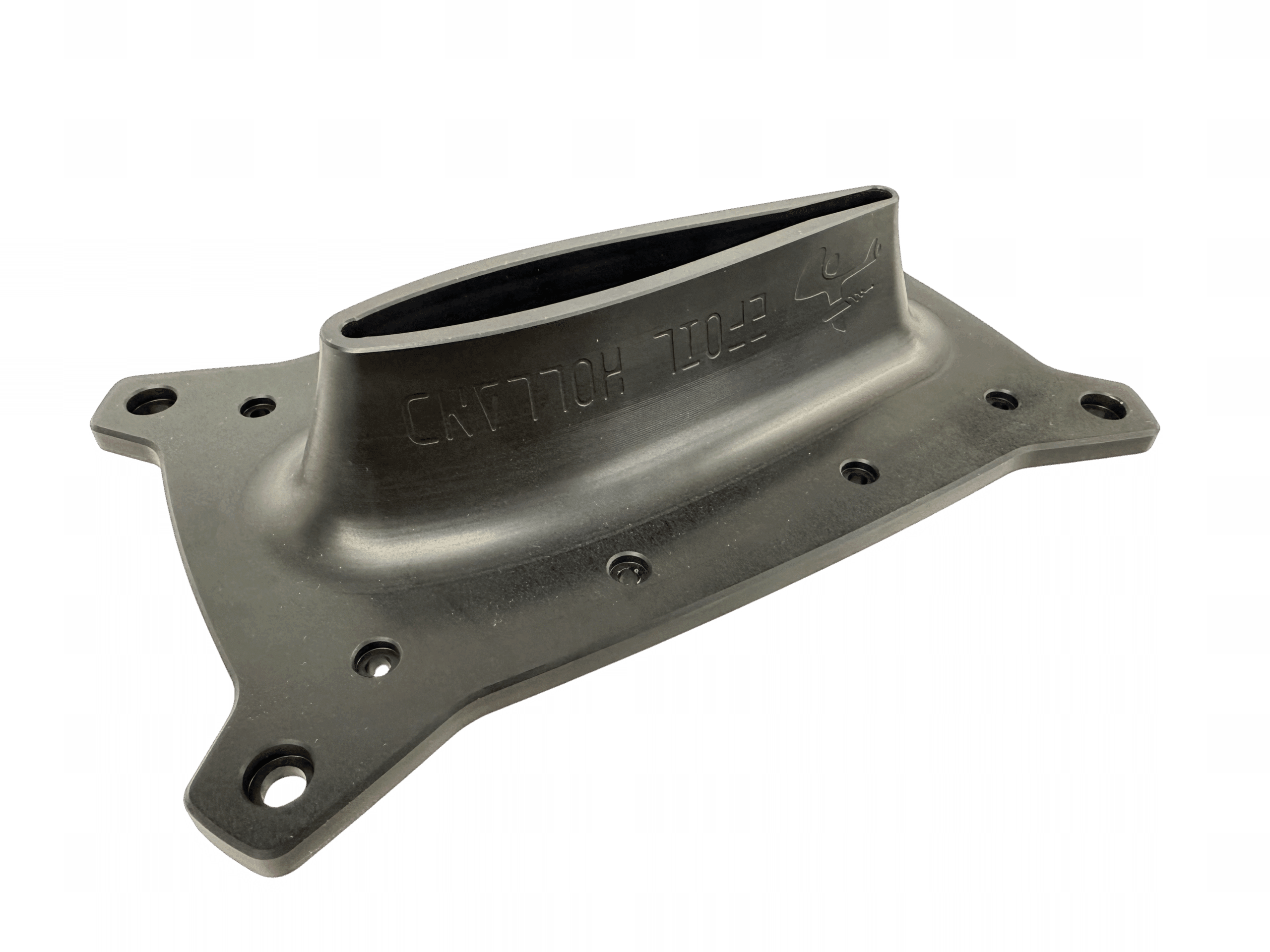

• Mastbox Lamination protector

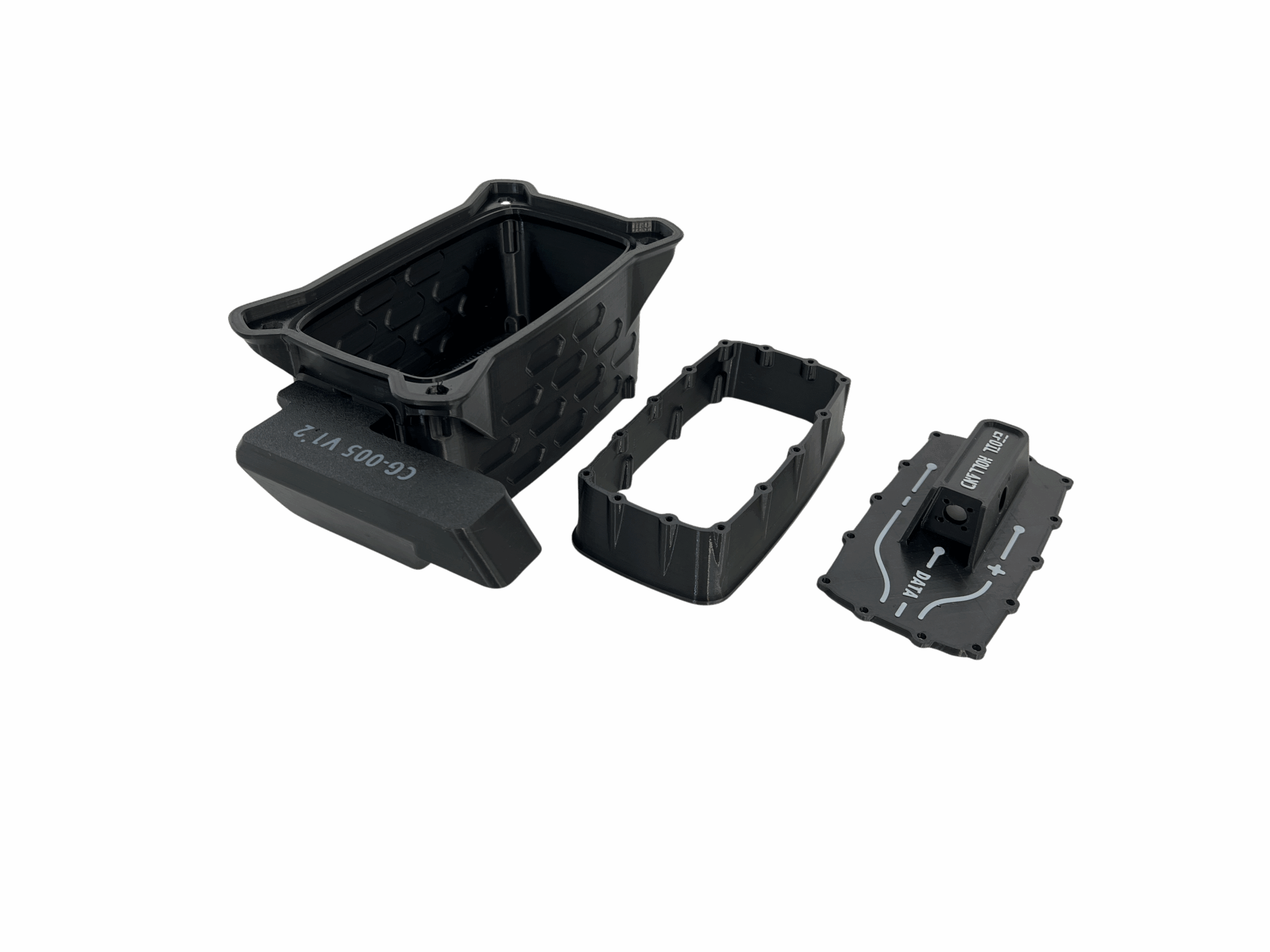

• Mastbox PETG

• Mastbox top plate PETG

• Mastbox top spacer PETG

• Mastbox cabletube PETG

• Hatch PETG set + hinge

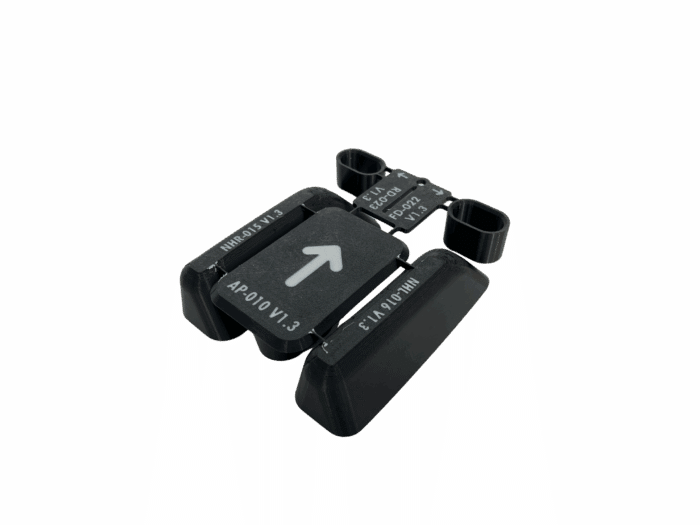

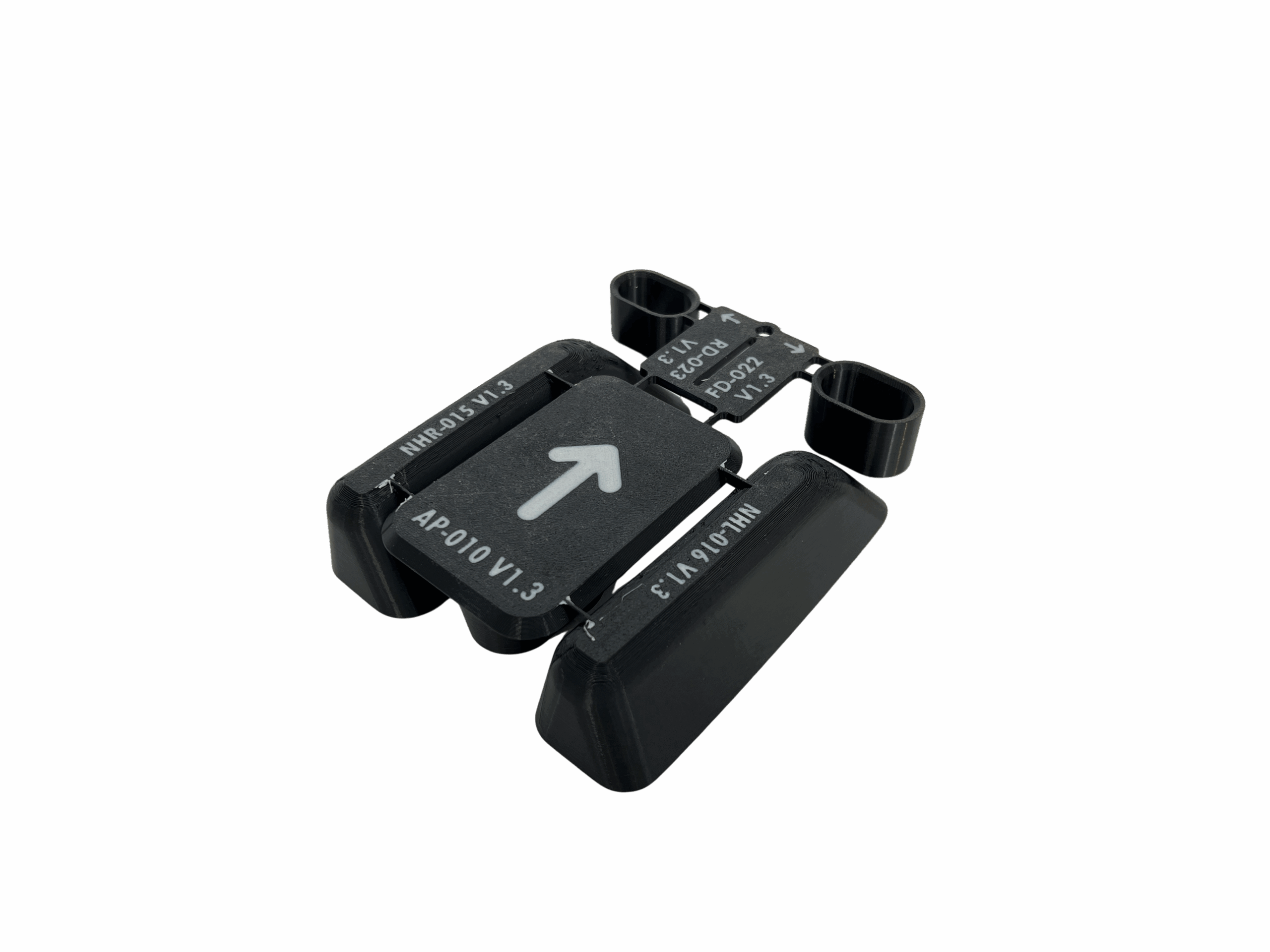

• Handle & anchor point set PETG

• Mainbox pre-charge cover PETG

• Vesc spacer’s

Electronics

• CN-linko female square panel plastic

• CN-linko male cable plastic

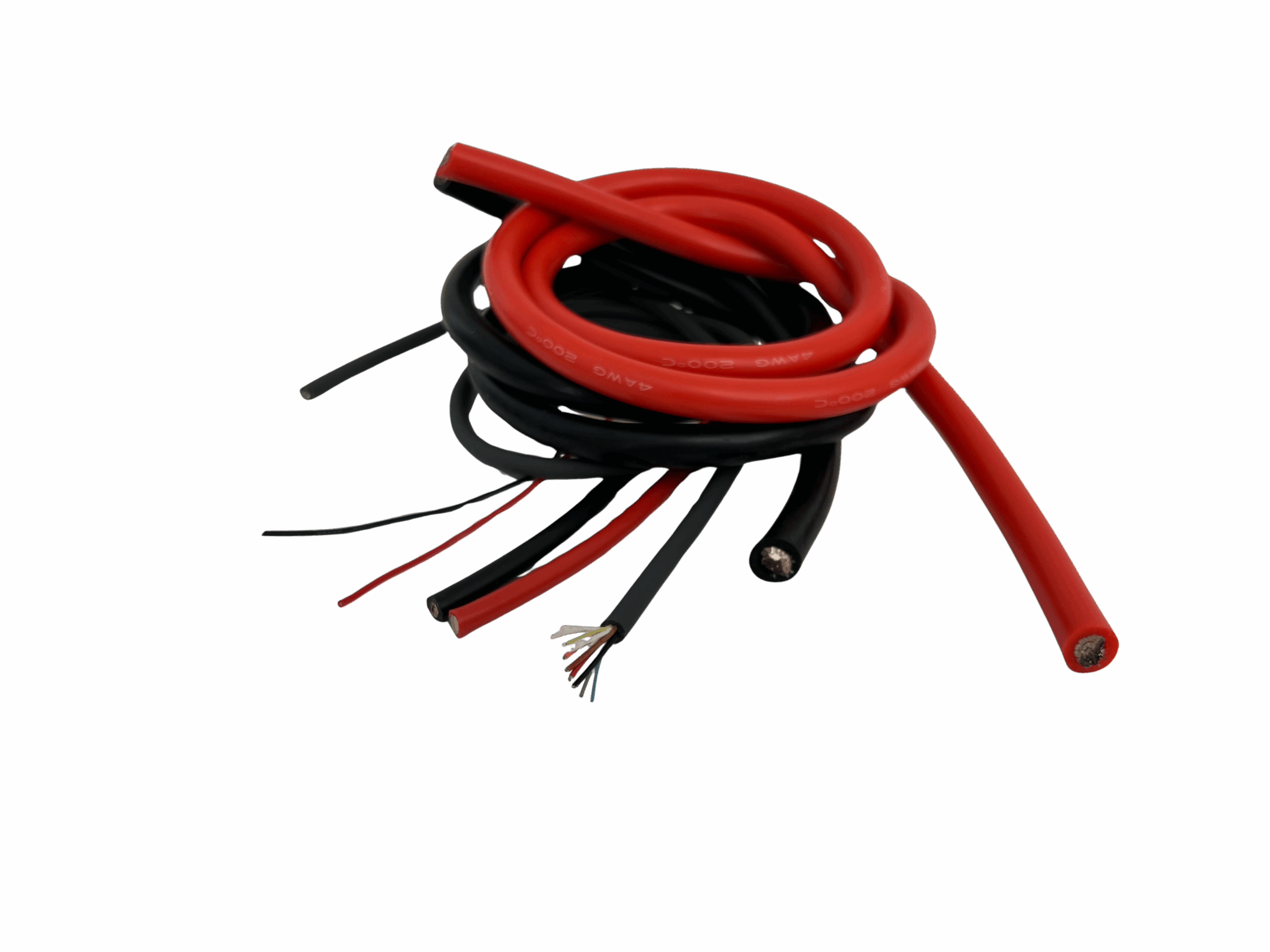

• Silicone cable set

  • 1m Silicone datacable 6 core (or 8 core)

  • 1m Silicone DC cable 4AWG red

  • 1m Silicone DC cable 4AWG black

  • 0,1m Silicone DC cable 8AWG red

  • 0,1m Silicone DC cable 8AWG black

• Electronics set

  • XT60 Panel male

  • Cable lug 10mm² 6mm

  • Butt connector 10mm²

  • 25W 100Ohm Resistor

  • Fuse 5A slow

  • 48V 4mm panel LED red

  • 55°C NC Ceramic thermal switch

  • 22 AWG red

  • 22 AWG black

  • Glue heat shrink 10mm

Hardware components

• Mainbox hatch

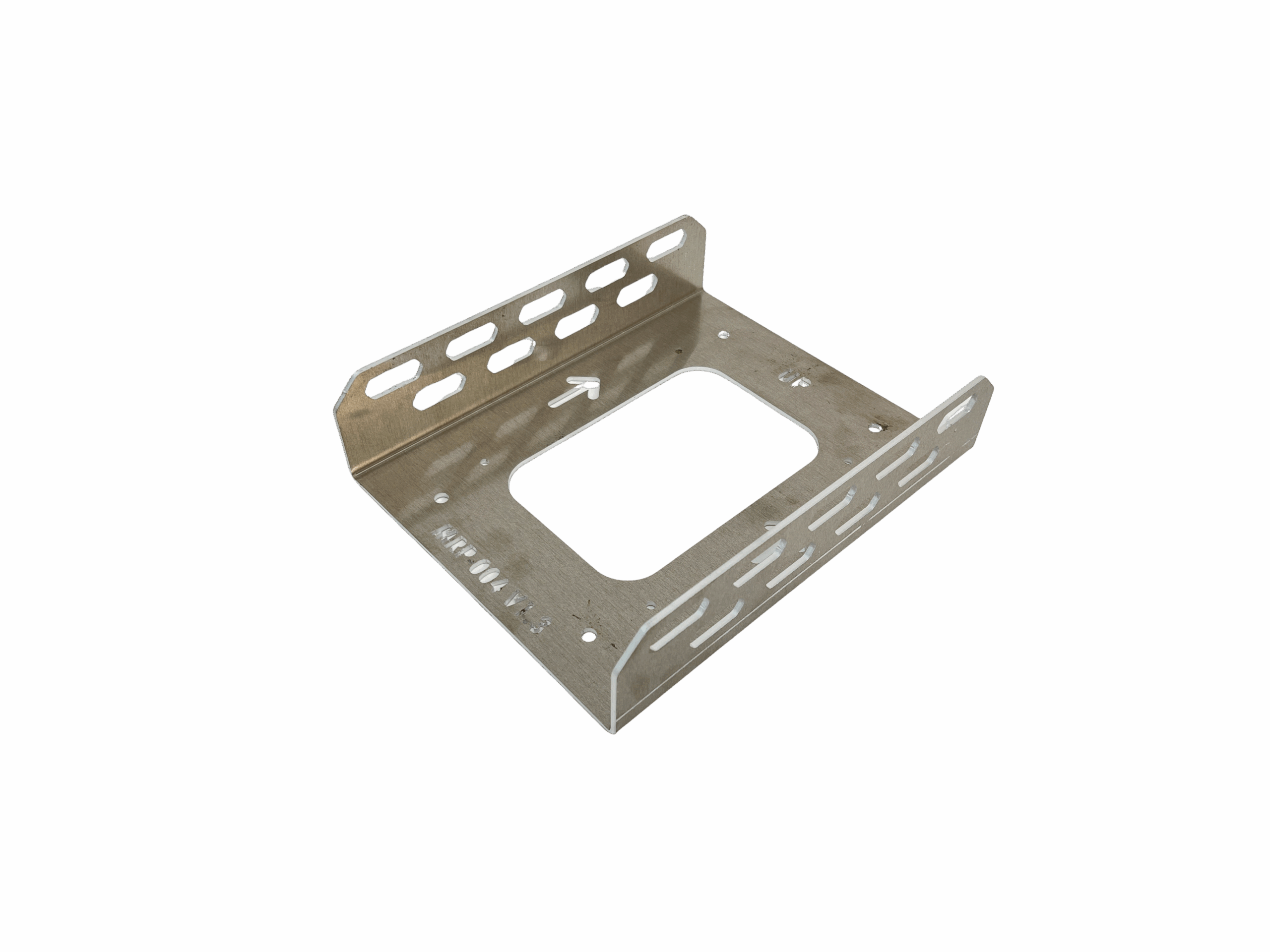

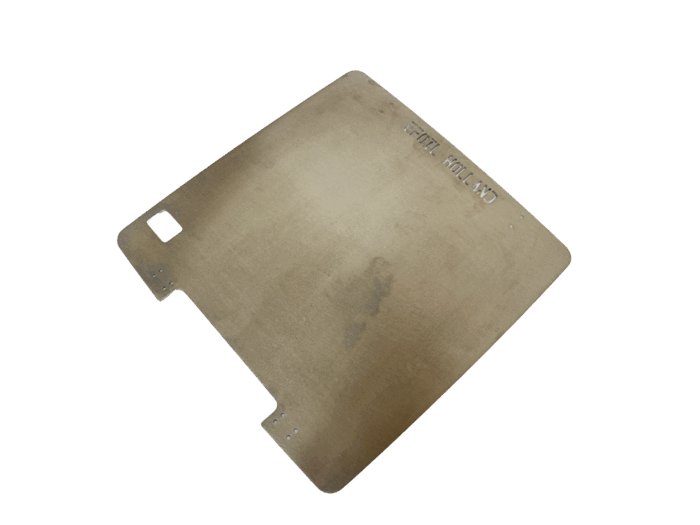

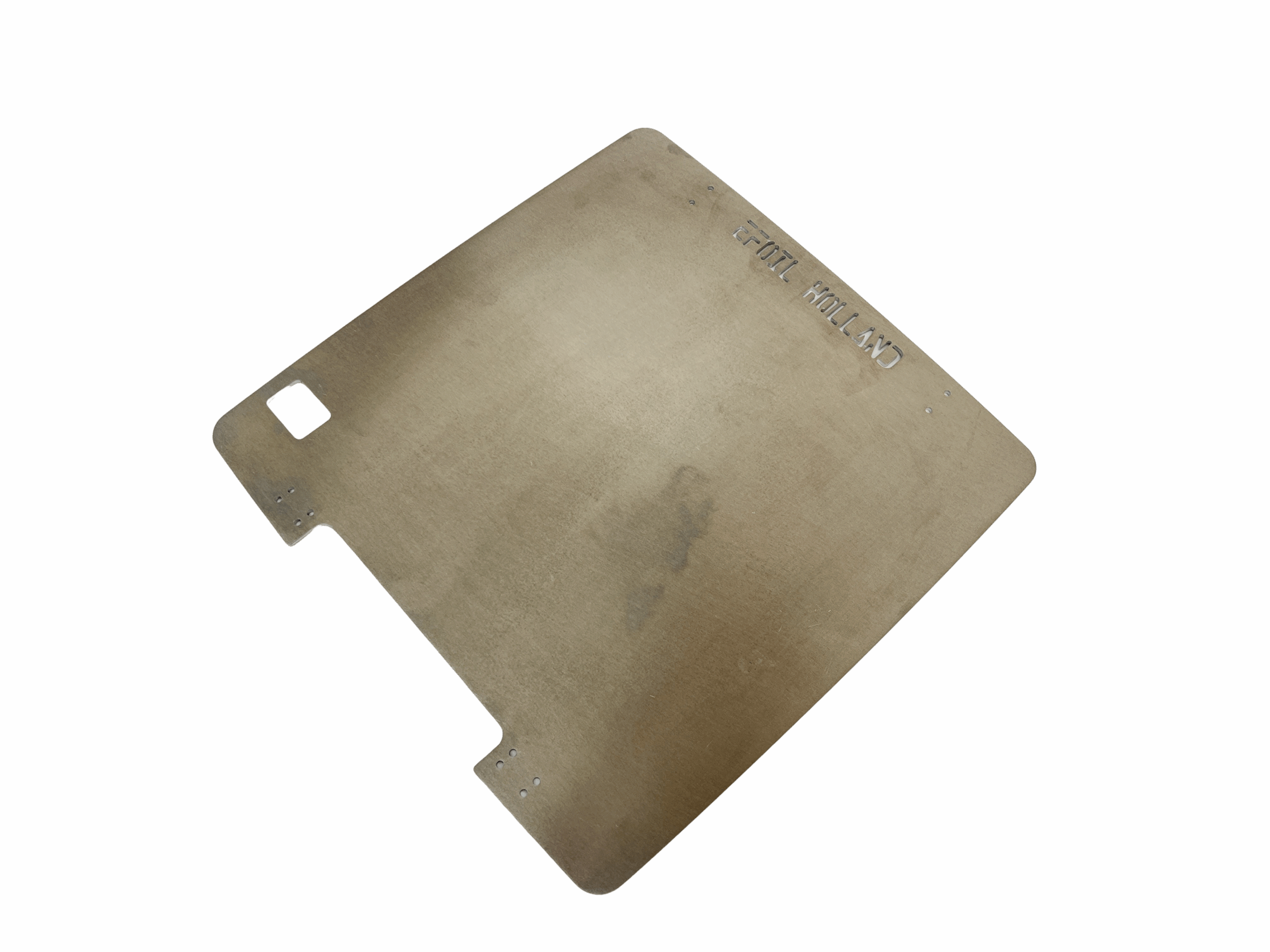

• Mastbox plate

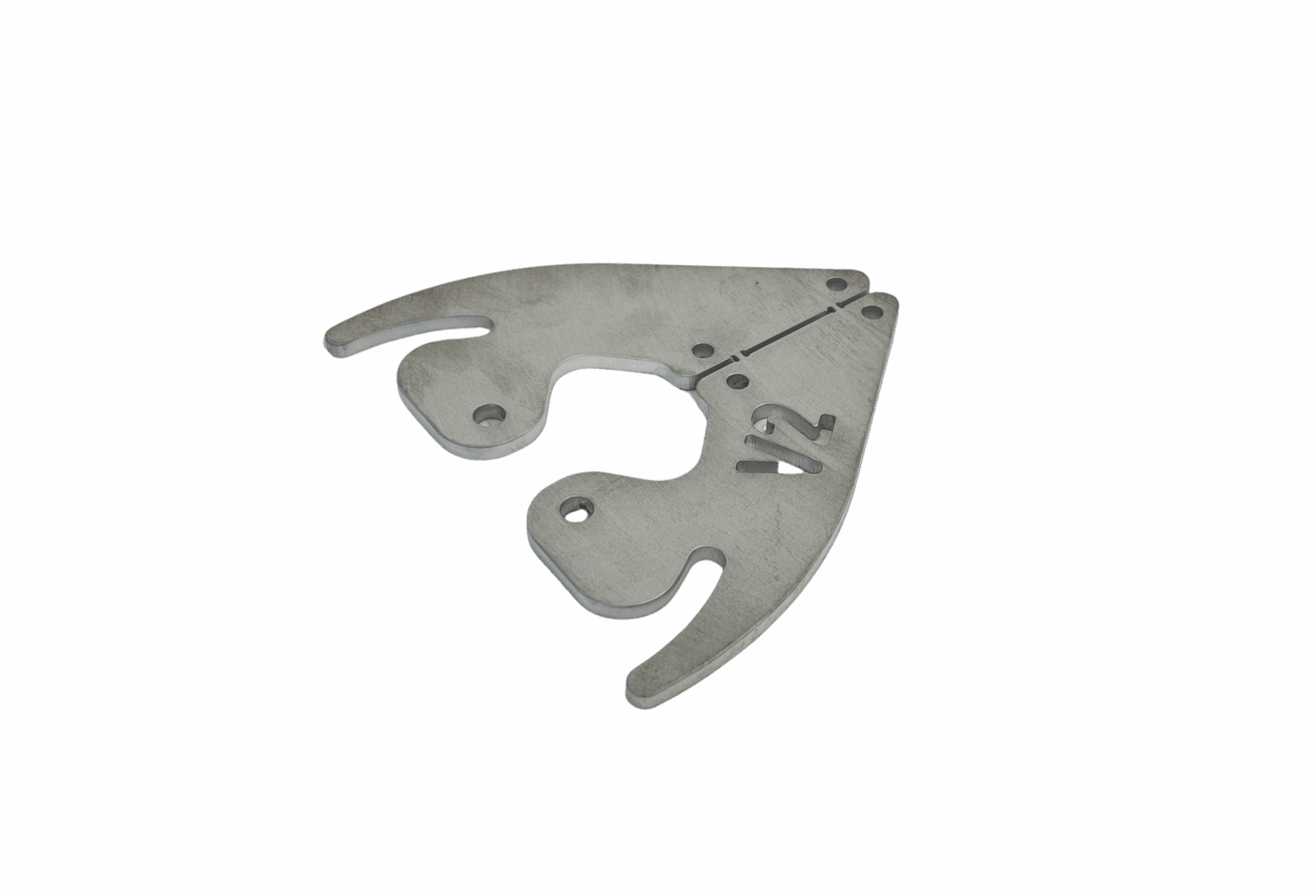

• Mainbox locks

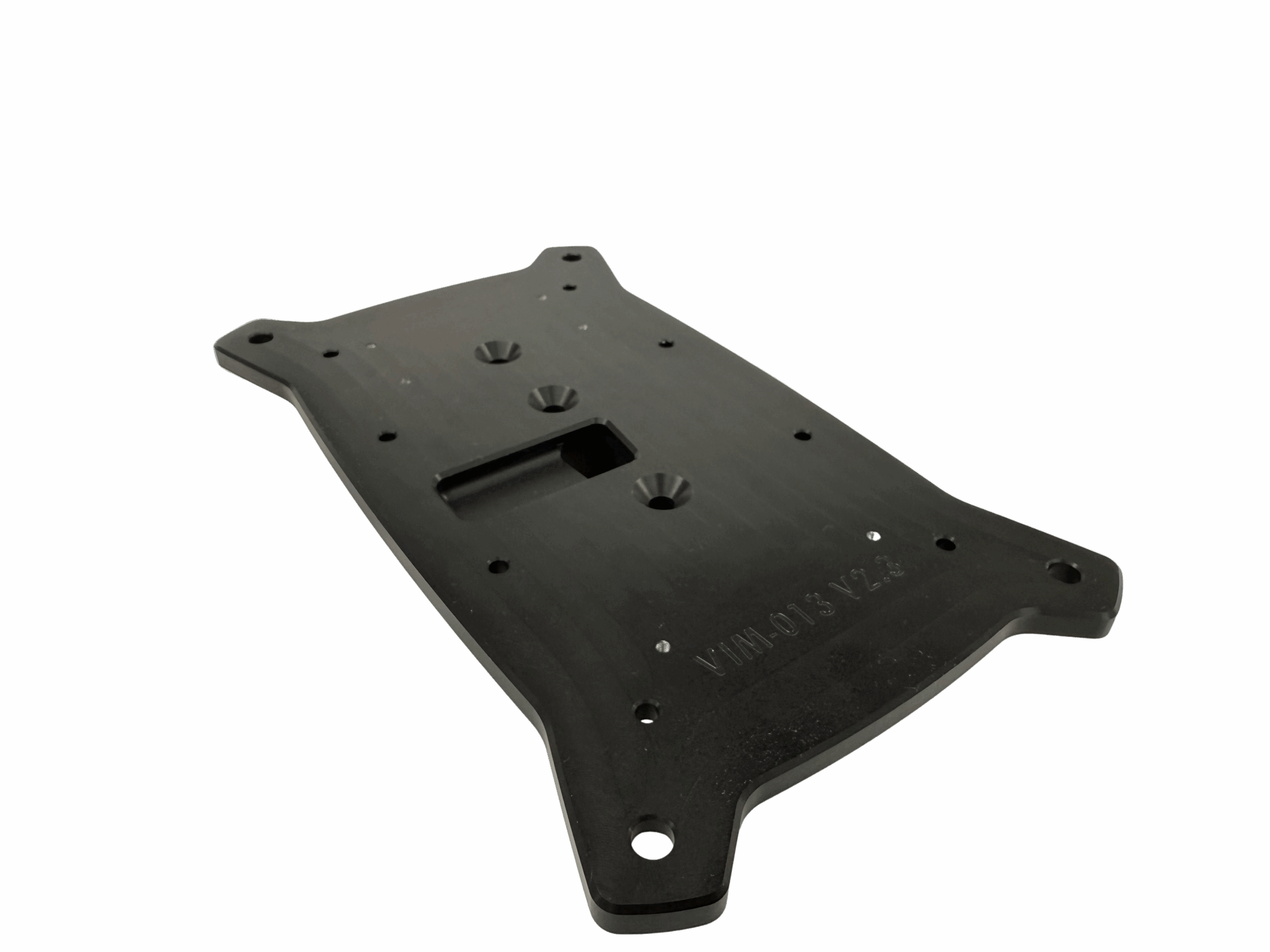

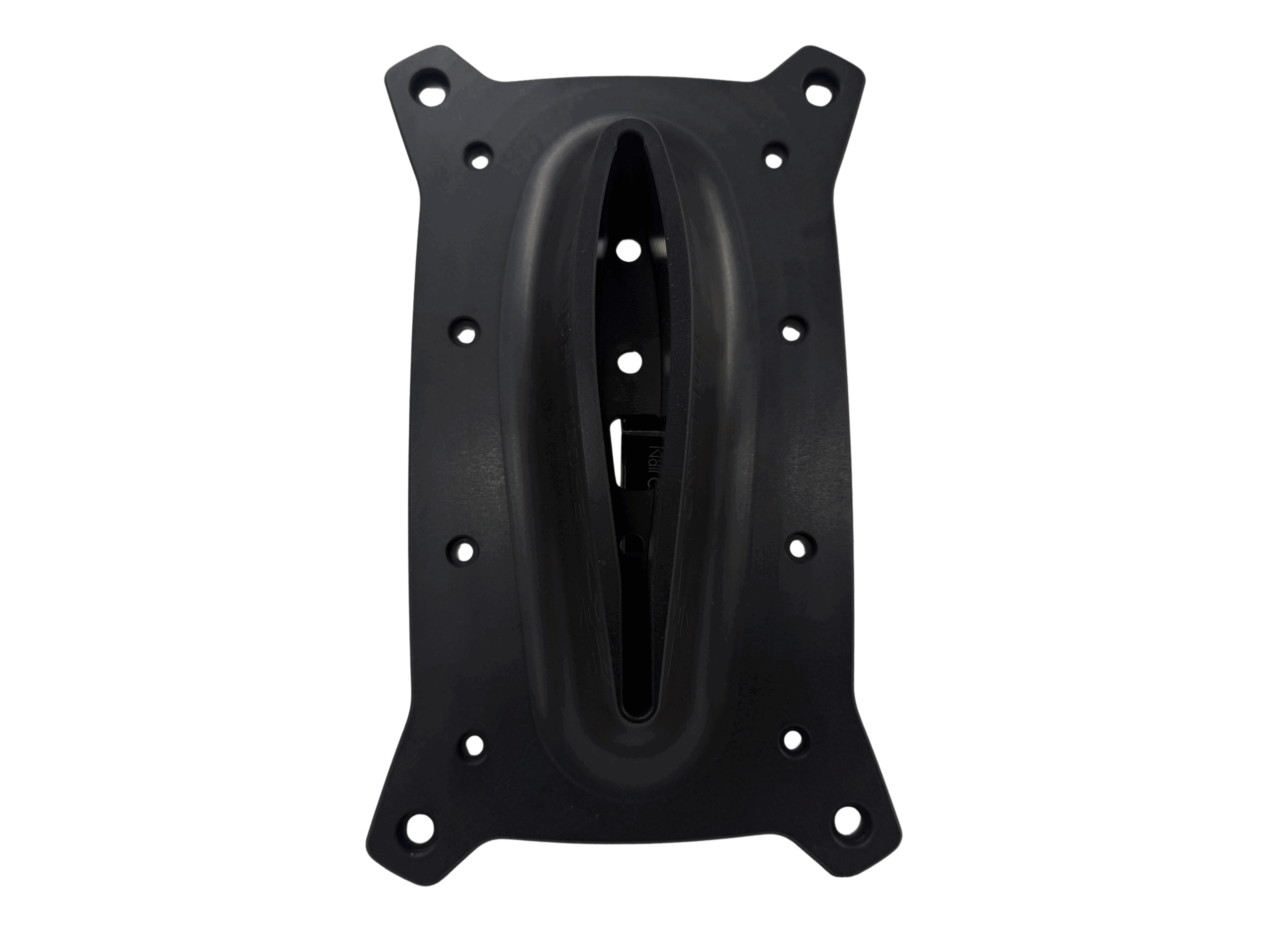

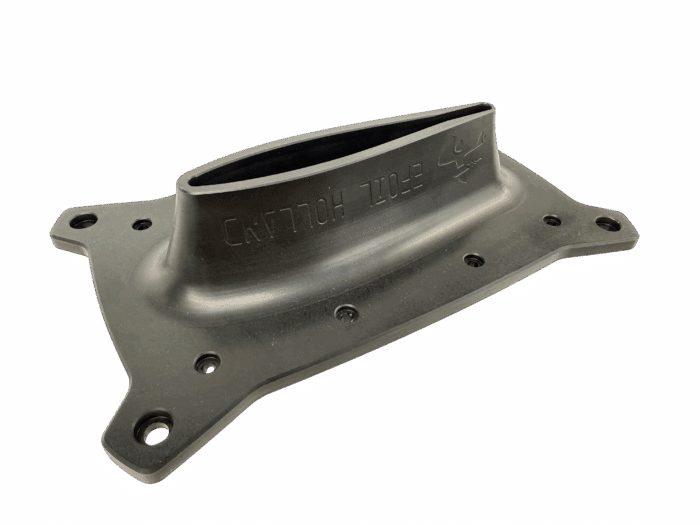

• Mastplate

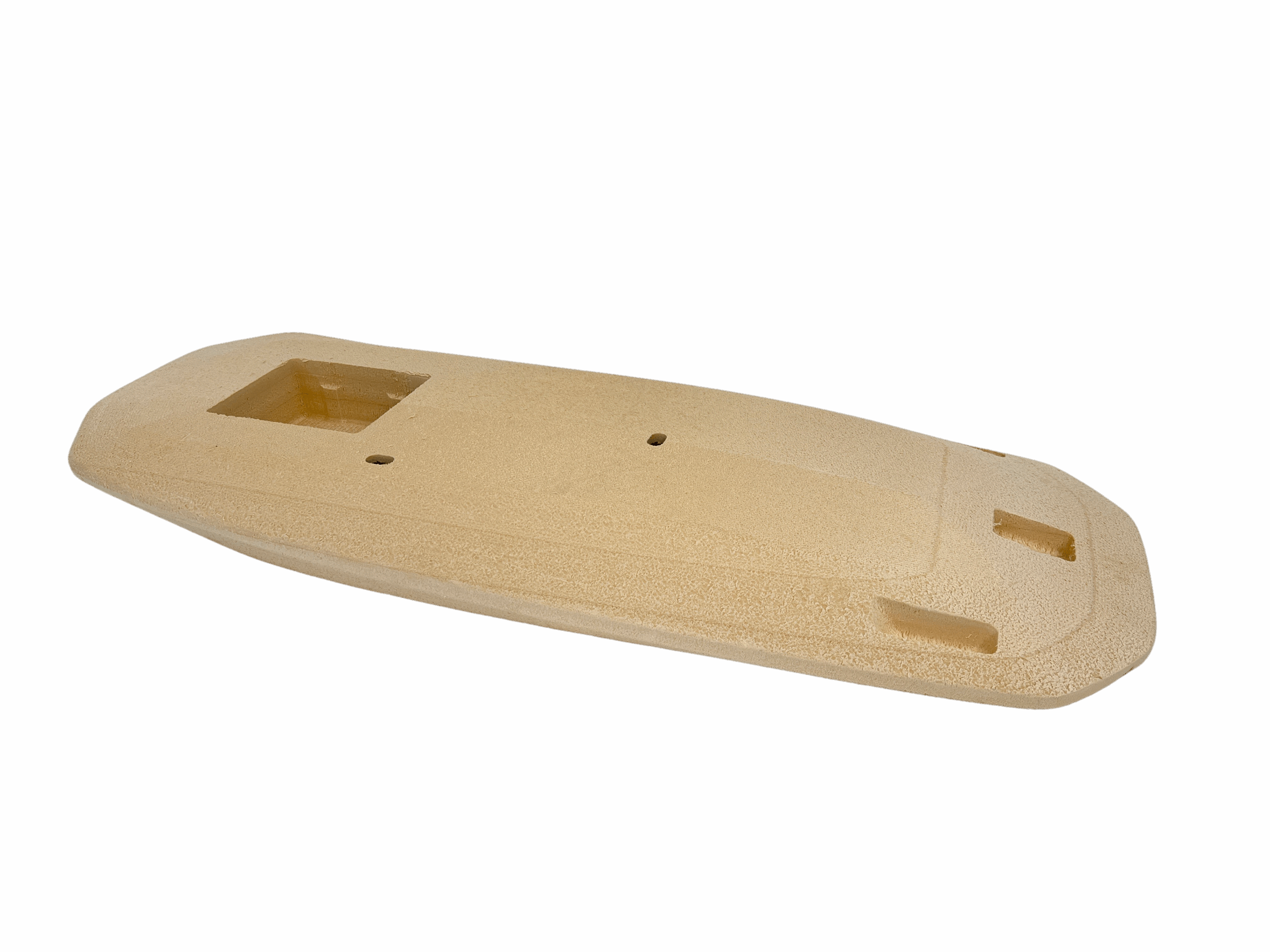

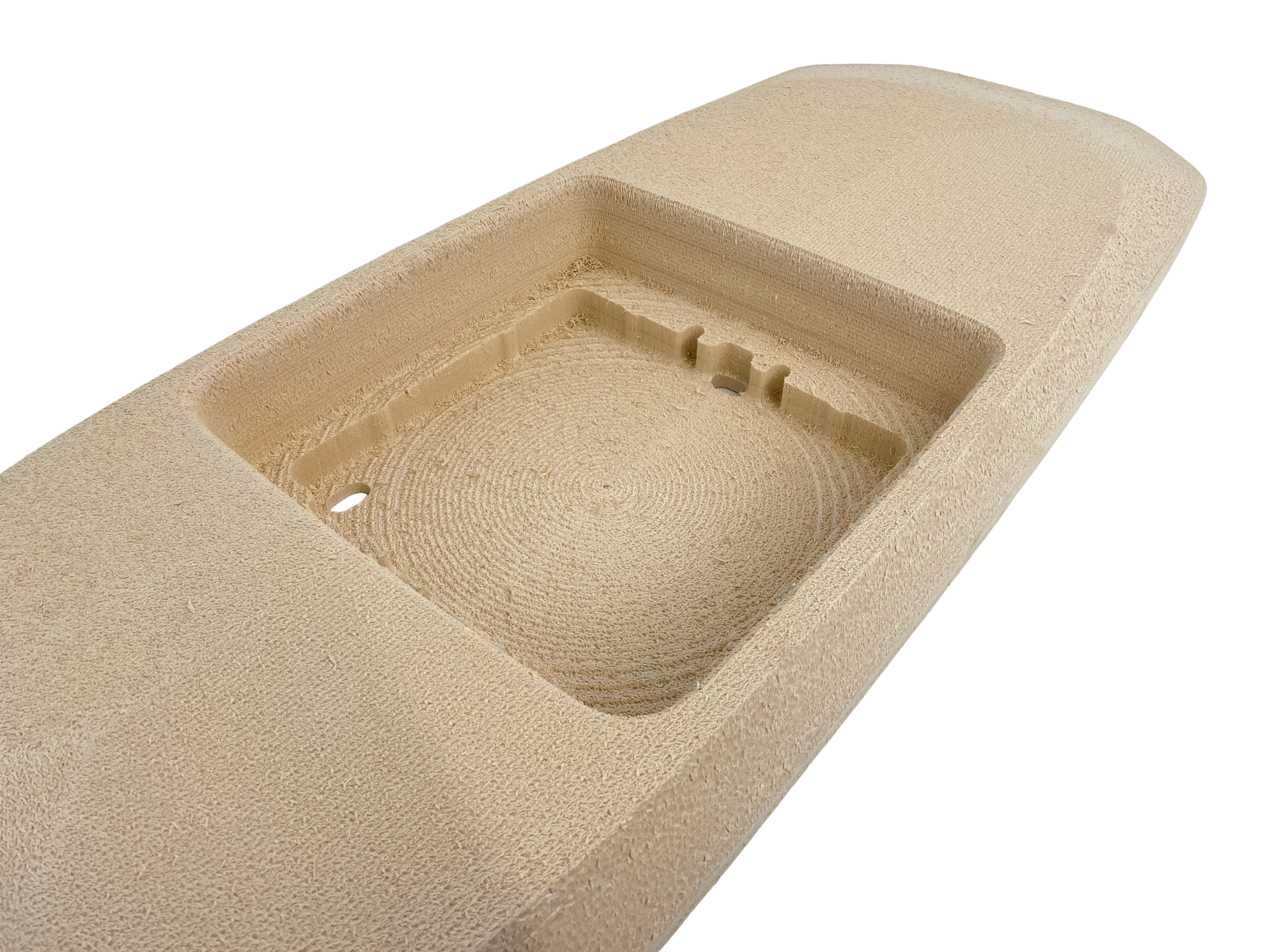

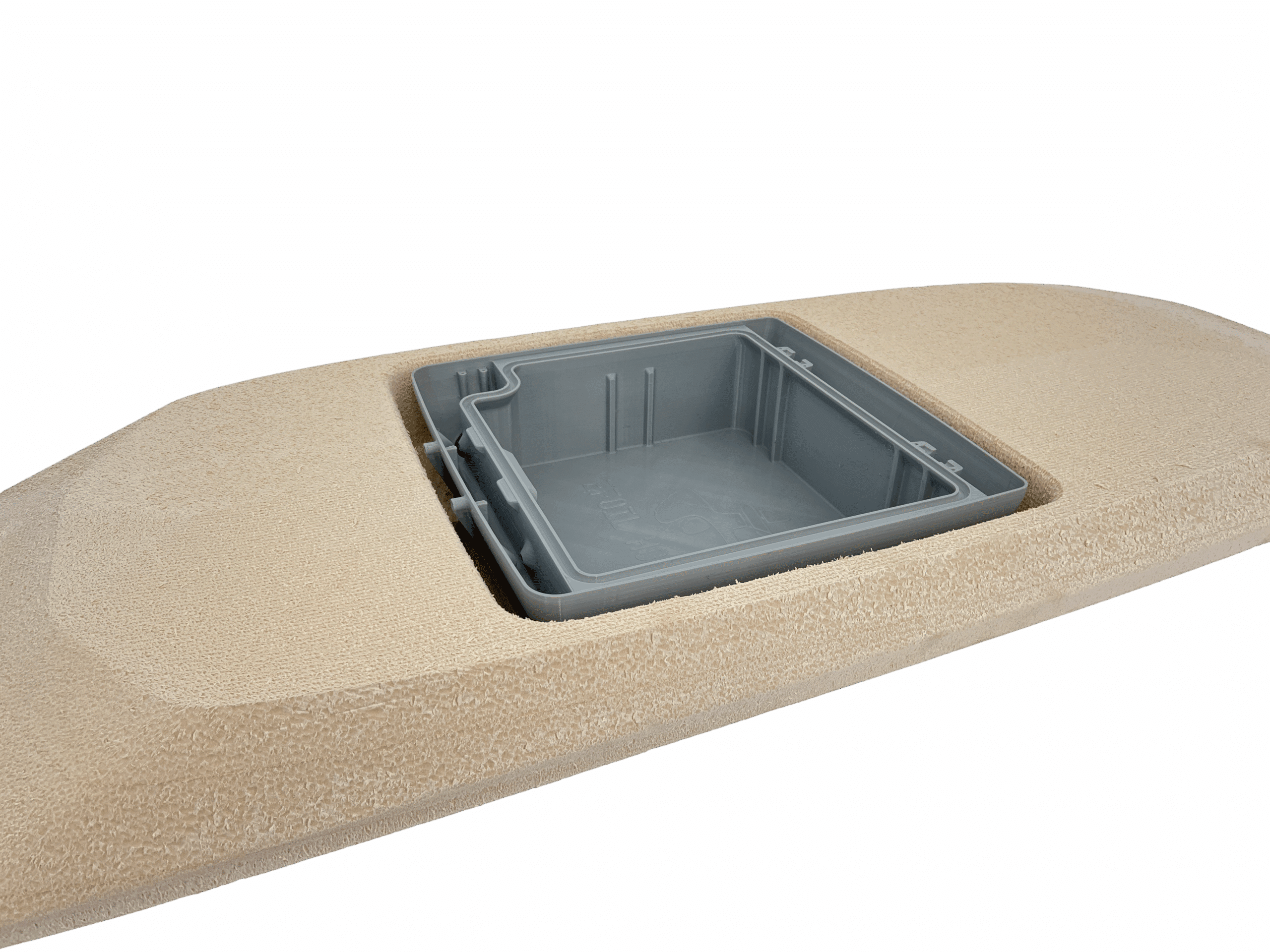

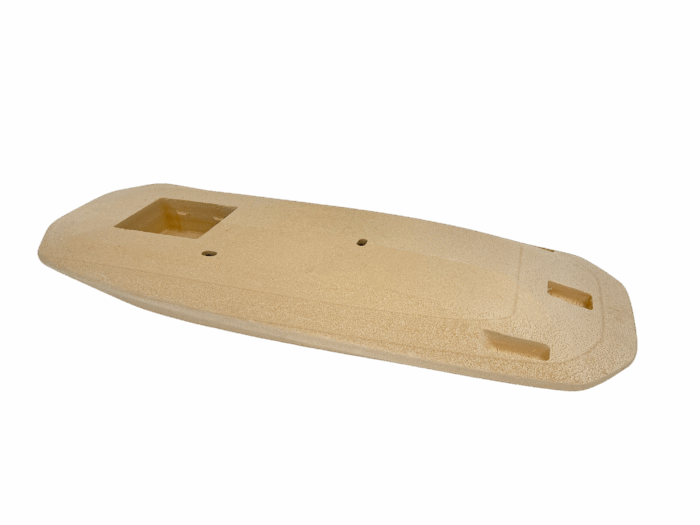

• XPS foam core

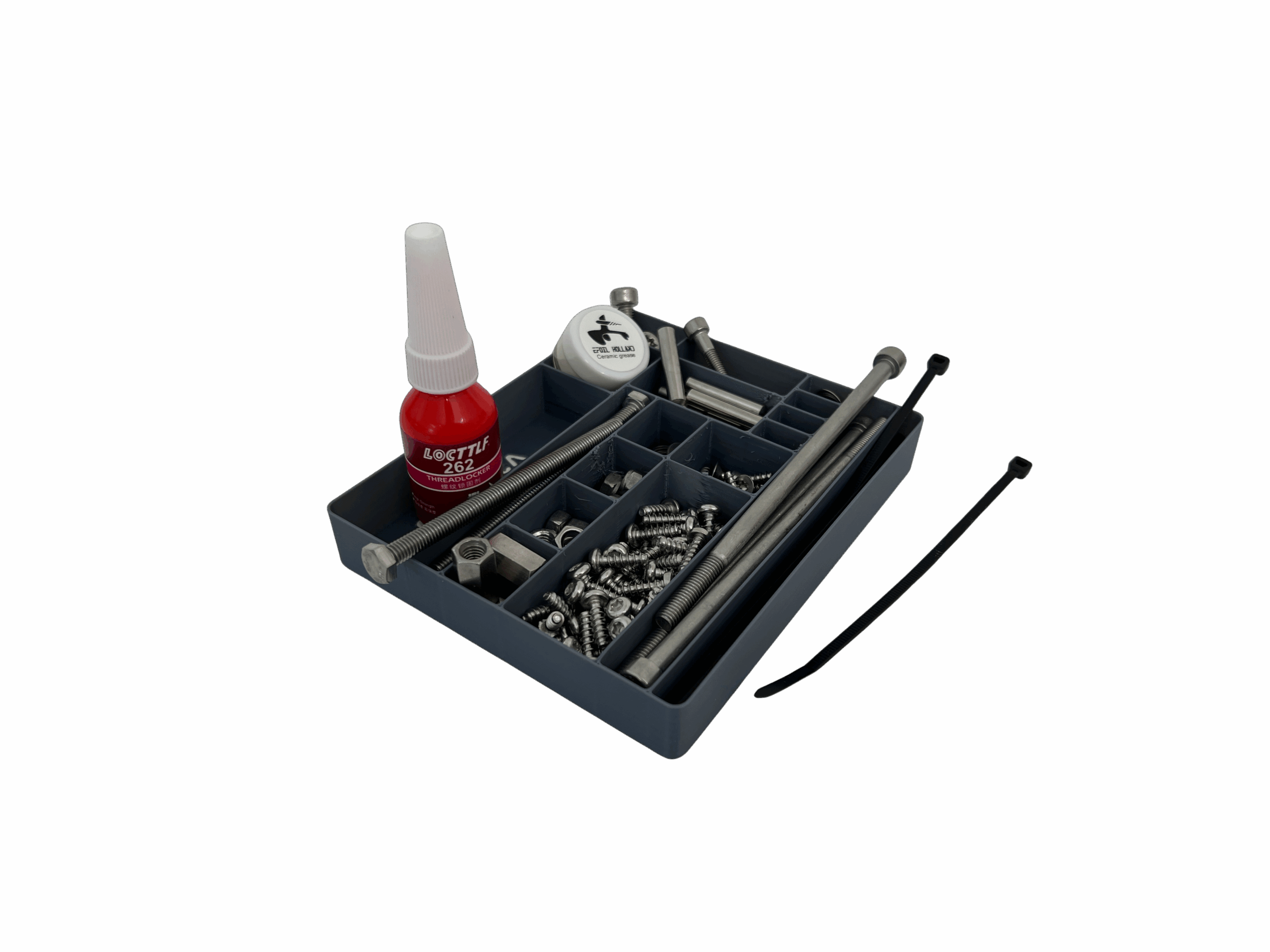

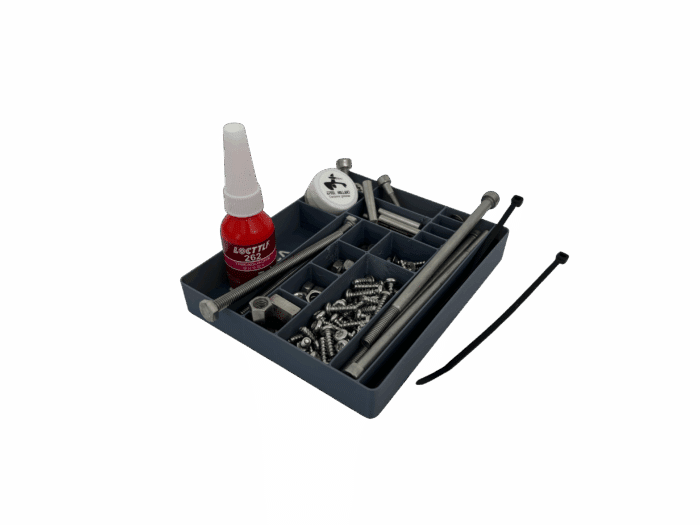

• Stainless steel hardware set

  • Stainless pin long (6x40mm)

  • Stainless pin mid (6x28mm)

  • Stainless pin short (12mm)

  • Stainless M6x90 bolt

  • Stainless M6 lock nut

  • Stainless M6 coupling nut

  • Stainless M6 nut

  • Stainless M6x14mm

  • Stainless M6 washer

  • Stainless plastic countersunk 12mm

  • Stainless plastic roundhead 14mm

  • Stainless M3x6

  • Stainless M3x15x0.8 washer

  • Rubber O-ring (10×1.8)

  • Stainless M2.5×10

  • Stainless M6x130

  • Stainless M4x30

  • Loctite 262

  • Ceramic grease
